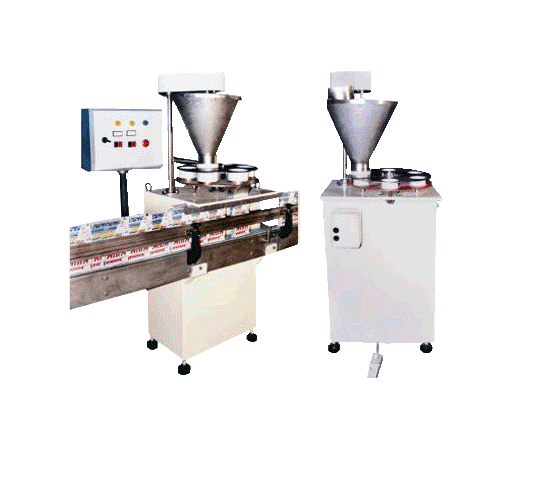

Full automatic cup filler& semi automatic cup filler CUPA-CUPN

Fully automatic cup filler and sealer machine set up for filling and sealing cup or other plastic containers with rectangle or round opening  up to 200 mm diameter, with Al foil seals or  clear plastic film( cutting, heating and sealing aluminum foil contemporary had been done by machine ).
The machine picks up cups and put them on the round table then after sealing the cup it comes up by and collected by it. It is possible to deliver it with filler for liquids like water, juice,etc and also with thick liquids and paste fillers.



Model

CUPA

Dimension MM

3000×800×1800

Filling range

50 to 1500 GR

Air Consumption

300 Liter/HR

Stirrer motor

0.5 HP

Conveyor motor

0.5 HP

Main motor

1 HP

Capacity

1500 CONT./HR
