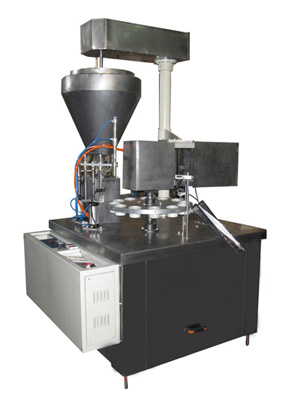

Full Automatic Tube Filling Machine (TUA,TUP)

This automatic machine is designed to fill and close plastic and laminate tubes by hot air or aluminum tubes by folding.
A special version of the machine is able to fill and close both plastic, laminate and aluminum tubes.
Machine can be used for filling of liquid, creamy or pasty products by means of a volumetric dosing system.
Automatic system is equipped with tubes hopper and orientating device by means of a photocell. Closing jaws are equipped with exchangeable coins to mark a code, date and batch in a weld.
The machine is designed especially for food and cosmetic industry.





Model

TUA-TUP

Dimension MM

1300×1000×1700

Power supply

380V/50Hz

Air pressure

6 ATM

Dose

3-500 ML
fluently adjustable

Dose accuracy

±1,1% from 3 up to 8 ML
±0,9 % from 9 up to 50 ML
±0,7 % from 50 up to 250 ML

Tube length

50 - 250 MM

Tube diameter

10 - 50 MM

Air consumption

200 Lit/HR

Stirrer Motor

0.75 HP

Main Motor

1.5 HP

Lubrication

easy mechanical

Weight

400 KG

Capacity

1600 PCS./HR
