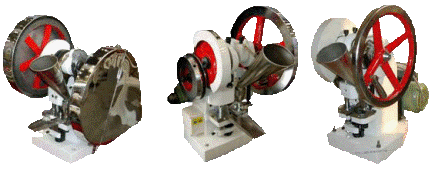

Tablet Press TP1.5-6

















This machine is designed for pressing tablets from various granular materials which is used for pharmaceutical,chemical,food, hospital, science research institution is applicable to trial manufacturing in lab or produce in small amount different kinds of tablet, sugar piece, calcium tablet and tablet of abnormal shape. It features a small desktop type press for motive and control sheeting. It can also be hand -operated easy to be operated and maintained, small volume, and light weight. One set of punch and de is mounted the depth of the filling material tablet press and thickness of the tablets can be adjusted

Special Features:
- Glossy Finished Stainless Steel Belt Cover
- Better Built and Most Affordable in its Class!
- Larger Diameter Tablets up to 12mm (TDP-1.5)
- Presses both Round and Irregular Tablets
- Larger Motor and Compression Force
- Power Source: 220V, 50Hz, Single Phase, AC or base your inquiry.
- Includes One (01) Free Set of Punch and Die
- Lab Use Only-‎--‎-‎-‎--Not suitable for mass production
- Friendly Support and Prompt Services
TDP-1.5, TDP-5,. TDP-6





ITEM

TDP-1.5

TDP-5

TDP-6

Max. Pressure(KN)

15

50

60

Max. Dial of Tablet(mm)

12

20

25

Max. Depth of Fill(mm)

12

18

16

Max. Thickness of Tablet(mm)

6

6

10

Production Capacity(PC/h)

5000

5000

4000

Motor

550w1400r/min

750w1400r/min

1100w1400r/min

Machine Size(mm)

570x380x630

650x440x650

580x600x700

Net Weight(Kg)

925

125

160
