extracting Machine-MFE

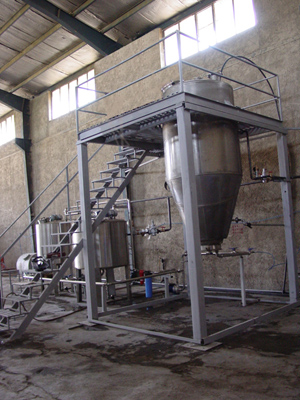

1-  TQ series multi-function extracting Machine-MFE



·  Usage: this equipment as a common product in producing medicine, is often used to extract effective ingredients from herbal medicine and perfume oil in such fields as pharmaceutical manufacturing, biology, food, chemical industry etc.

·   ch‎arrracteristics:

 It’s strictly produced based on the standard of pressure vessel, polished in both  internal and external side. In accordance with GMP requirements.

It’s made up of the main jar, foam breaker, condenser, cooler, oil-water separator, filter etc.

There are mainly vertical barrel type, positive cone, mushroom type, reverse cone etc. According to the requirements, mixing equipment can be installed.

There’re several optional types to install slag-removing door, like double-cylinders, multi-cylinder, spiral and engaging type.

 As the client’s requirement to improve the production affectivity, filter area can be increased when liquid flows out.

































Technical variables:





Parameters/Model

TQ-0.5m3

TQ-1.0m3

TQ-2.0m3

TQ-3.0m3

TQ-5.0m3

TQ-6.0m3

TQ-8.0m3

Extracting volume(L)

500

1000

2000

3000

5000

6000

8000

Work pressure

of Clamp Ferrule(MPa)

0.25

0.25

0.25

0.25

0.25

0.25

0.25

Work pressure of

inner liner(MPa)

Normal pressure

Normal pressure

Normal pressure

Normal pressure

Normal pressure

Normal pressure

Normal pressure

Heating area(m2

2.7

3.6

5.0

6.5

8.5

10

12

Condensing area (m2

3

4

5

8

8

8

12

Cooling area(m2

0.5

0.5

1

1

1

1.5

1.5

Vapor consumption(kg/h)

65

115

230

345

570

680

900

Cooling water volume(t/h)

3

4

5

8

8

8

12

Diameter of slag-deleting door(mm)

600

800

800

8000

1000

1000

1200

Overall dimension(m)

1.5x1.5x4

3x3x5

3x3x6.2

3x3x6.5

3.5x3.5x7

4x4x7

4x4x8
