Introduction and features:

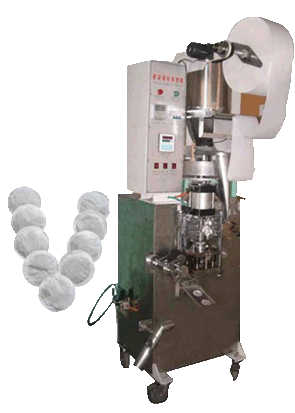

Automatic circular tea-bag packaging machine, which has being popular in international ,yet hasn’t appeared in domestic markets . Compared with the traditional granule packaging machine , it is unique in beautiful appearance and also has other outstanding advantages. There are two types of it , a tea-bag with a tag or without . The later can support the use of circular tea-bag sealing machine, which can shape a convenient tea cup when we seal the tea-bag at the bottom of the cup.

1.According to the special designed mould and the distinctive cutting way ,we will manufacture the heat filter paper and tea into circular tea-bag. We also can produce the tea-bag in the shape of ladder and oval with the consideration of customers , which can’t be produced by traditional tea-bag packaging machine.

2.Adding the tag to tea-bag that will enable customers to use it more convenient ,on the other hand it will also benefit  the publicity of company.

Content packed: Green tea, black tea, scented tea, coffee, tea, healthy tea, herbal tea and other granular materials.



Main technical parameter:



Item

Index and descr‎iptttion

Production capacity

≥30(bag/min)

Tea Content

≤ 1.2g ±0.2g(the case of broken tea)

Paper specification

Standard seal filter paper

Bag size(mm)

Φ51~52mm

Roll amount

1

Roll width

140mm

Paper core diameter

Φ76mm

Unwinding diameter

≤Φ400mm

Number of cutting mold

1 pair

Air pressure

≥0.6Mpa(air consumption 0.1M3/min)

Cut form

punching

Operator

1 people

Power

1.5 KVA

Voltage frequency

220V、50Hz

Dimension

L 900×W 700×H 2000 (mm)

Weight

250Kg
